The QuimDC has four control modes, one is an open loop and the others are closed loops. Default mode is PWM Open Loop control mode.
In open loop, ref_speed is used to control the motors, here is an example :
With ref_speed set to 0, the pwm value is 128.
With ref_speed set to 62, the pwm value is 190.
With ref_speed set to -18, the pwm value is 110.
The current control period is 1 ms.
This loop needs the current amount that passes through the motor. The QuimDC has a 12 bits ADC but has no clue about the current sign. We need to estimate the current sign using this formula :
Vbemf = ((60 * speed) / (ticks_per_turn_motor * 0.001)) / kv_motor Voltage = nominal_power_voltage * ( pwmDuty - 128 ) / 128 with pwmDuty [0;255] itemp = (Voltage - Vbemf) / resistance_motor
We use the itemp sign to estimate the current sign. By default we have the following value :
resistance_motor = 1.0 kv_motor = Inf ticks_per_turn_motor = 1 nominal_power_voltage = 1.0
With this value, the current sign is estimated with the pwm sign. Resistance_motor, kv_motor, ticks_per_turn_motor and nominal_power_voltage are only used in this formula.

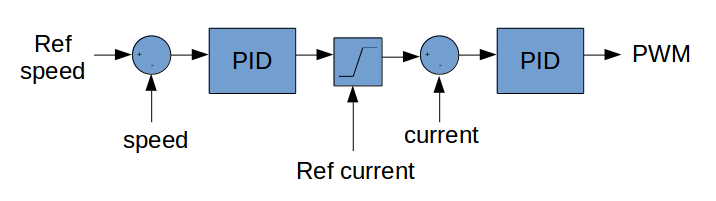

In this loop, we have two PID in cascade. The output of the speed PID is used as a reference for the second current PID. To ensure that the current doesn't exceed the ref_current, the first PID output is saturated by ref_current.
The speed is obtained by doing the difference between the encoder value at period n and period n-1 and then convert it into tick per second. We can change the period of the speed loop by setting the position_speed_period parameter.
If the quadrature encoder channel are swap, you can use the polarity to make them work (the polarity must be set to 1 or -1, any other value will not send error but will lead to unexpected results).
